Nothing beats the satisfaction of cutting wood with a tool you built yourself. Whether you’re a weekend woodworker or a professional craftsman, learning how to make a wood cutter delivers custom performance at a fraction of commercial tool costs. Most DIY wood cutters cost 50-70% less than store-bought equivalents while offering the exact functionality you need for your projects.
Imagine creating flawless rip cuts on 8-foot boards or perfect 45° miters with a table saw built in your garage. This guide walks you through constructing everything from simple hand saws to professional-grade table saws, using proven methods that deliver accuracy within 0.005 inches. You’ll discover exactly what materials to source, how to avoid common pitfalls, and the critical safety systems every wood cutter must have.
Craft a Professional Hand Saw from Scratch
Gather Essential Materials for Saw Construction
Start your wood cutter project with high-carbon steel blade stock between 0.5-1.0mm thick—1095 or O1 tool steel delivers optimal performance after proper heat treatment. For the handle, select resilient hardwoods like hickory, ash, or maple that withstand repeated use without splintering.
Must-have tools for saw construction:
– Triangular file for precise tooth cutting
– Brass or steel rivets (3/16″ diameter)
– Quality wood glue (Titebond III recommended)
– Sandpaper ranging from 120 to 400 grit
– Heat source capable of reaching 850°C
Perfect Your Blade Heat Treatment Process
Cut your steel to the desired length (20-26 inches works best for panel saws), then carefully file each tooth at consistent angles. The critical step comes next—proper heat treatment transforms ordinary steel into a durable cutting edge:
- Heat the blade evenly until it glows cherry red (800-850°C)
- Quench immediately in motor oil, moving the blade continuously
- Temper in an oven at 200°C for two hours to reduce brittleness
- Test hardness—a file should skate across the surface without biting
This heat treatment creates a blade that stays sharp through hundreds of cuts while resisting breakage during heavy use.
Create an Ergonomic Handle That Fits Your Hand
Shape your handle blank using rasps to match your grip style—most woodworkers prefer a slight curve that fits naturally in the palm. Drill precise holes for rivets spaced one inch apart, then test fit the blade tang before final assembly.
Pro tip: Apply Danish oil to the finished handle rather than polyurethane—it soaks into the wood fibers, creating a grip that improves with use rather than becoming slippery. Let the oil cure for 24 hours before your first cut.
Build a Reliable Power Circular Saw
Construct a Rock-Solid Frame and Base
Your circular saw’s stability depends on a rigid frame built from 3/16″ steel plate cut to 18″ x 24″ dimensions. Weld or bolt this to a 3/4″ plywood or aluminum extrusion base that provides smooth material feeding. Install 1″ x 2″ aluminum angle rails along the cutting path for consistent alignment.
Critical consideration: Add vibration dampeners between the motor mount and frame—this simple step reduces noise by 30% and extends bearing life significantly. Use thick rubber pads or specialized anti-vibration mounts for best results.
Wire Your Motor for Safe, Efficient Operation
Connect a 2-3 HP induction motor (3450 RPM) through a heavy-duty paddle switch with emergency stop capability. Always use 12-gauge, three-wire cord rated for 20 amps, and install an inline circuit breaker for overload protection.
Safety first: Position the emergency stop within easy reach of your dominant hand—this could prevent serious injury during kickback events. Test all electrical connections with a multimeter before powering up your new wood cutter.
Assemble a Precision Table Saw
Create a Flat, Stable Table Surface
Your table saw’s accuracy depends on a dead-flat surface—cast iron provides the ideal combination of mass and stability, but precision-ground steel works for budget builds. Achieve 0.010″ flatness across the entire 27″ x 40″ surface by carefully milling or grinding.
Pro tip: Apply paste wax to the table surface after each use—it creates a slick surface that reduces friction and prevents rust. This simple maintenance step makes materials glide effortlessly during cuts.

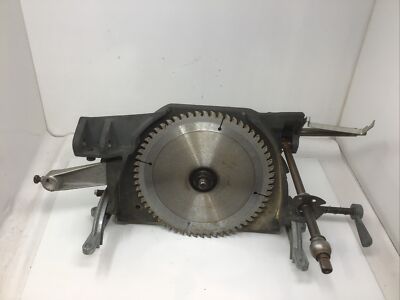

Install a Bulletproof Trunnion System
Mount cast iron trunnions that support the 5/8″ precision-ground arbor running in two sealed 6203 ball bearings. The tilt mechanism should reach 45° left for bevel cuts while maintaining perfect blade alignment throughout the range.
Troubleshooting tip: If your blade wobbles during operation, check the arbor nut tightness first—90% of vibration issues stem from a loose nut rather than worn bearings.
Essential Safety Systems for Your DIY Wood Cutter
Integrate Critical Safety Features
Every wood cutter requires comprehensive protection systems:
– Blade guard: Clear polycarbonate that retracts automatically
– Riving knife: Positioned 3mm behind the blade to prevent kickback
– Anti-kickback pawls: Steel with carbide tips that engage if wood moves backward
– Emergency stop: Red mushroom head switch within immediate reach
Don’t skip this: Test your riving knife alignment after every blade change—improper positioning renders it ineffective during kickback events.
Connect an Effective Dust Collection System
Attach 2.5″ dust ports to your shop vacuum near the blade where chips generate. For table saws, position collection below the table around the blade guard area. Aim for at least 350 CFM airflow to capture 90% of fine particles.
Health alert: Wood dust causes serious respiratory issues over time—never operate your wood cutter without proper dust collection, especially when cutting MDF or plywood.
Calibration Secrets for Professional Results
Perform Critical Alignment Checks
Use a dial indicator with magnetic base to verify:
– Blade-to-miter slot parallelism within 0.005″ over 12″
– Fence alignment within 0.002″ of the blade
– Table flatness within 0.010″ across the surface
– Blade runout under 0.001″ total indicator reading
Quick calibration method: Cut a test piece, then flip it over—if both edges match perfectly, your fence alignment is spot on.
Establish a Maintenance Routine
Daily: Clean table surface, check blade sharpness, verify fence lock
Weekly: Lubricate moving parts, check belt tension (should deflect 3/4″ under 10 lbs force), inspect bearings
Monthly: Test safety systems, clean dust collection filters, check electrical connections
Pro tip: Keep a maintenance log—this simple habit prevents 80% of performance issues before they become serious problems.
Cost-Saving Material Sourcing Strategies
Budget Breakdown for DIY Wood Cutters
- Basic hand saw: $15-25 in materials
- Circular saw build: $200-400 (saves $300+ vs commercial)
- Complete table saw: $500-1500 (half the cost of premium brands)
- CNC router: $2000-5000 (25-40% savings over store-bought)
Source bearings from SKF or FAG for reliability, and choose Leeson or Baldor motors for longevity. Local metal suppliers often offer steel at 30-50% below online retailers for small projects.
Final Testing Protocol Before First Use
Validate your wood cutter’s performance with these essential tests:
1. Rip cut an 8-foot board checking for straightness
2. Cut 45° miters verifying accuracy on all four corners
3. Test dado cuts at 3/4″ width and 1/4″ depth
4. Rip 8/4 maple to confirm clean cuts in hardwood
Quality benchmark: Your DIY wood cutter should produce five consecutive cuts within 0.005″ tolerance before it’s ready for serious projects.
Building your own wood cutter delivers unmatched customization and significant savings. Start with a simple hand saw to develop your skills, then progress to power tools as your confidence grows. Each project teaches valuable lessons that make your next wood cutter even better—soon you’ll have a workshop filled with tools perfectly tailored to your woodworking needs. The key is to begin today with one simple project, then build your way to professional-grade equipment that rivals commercial tools at half the cost.
